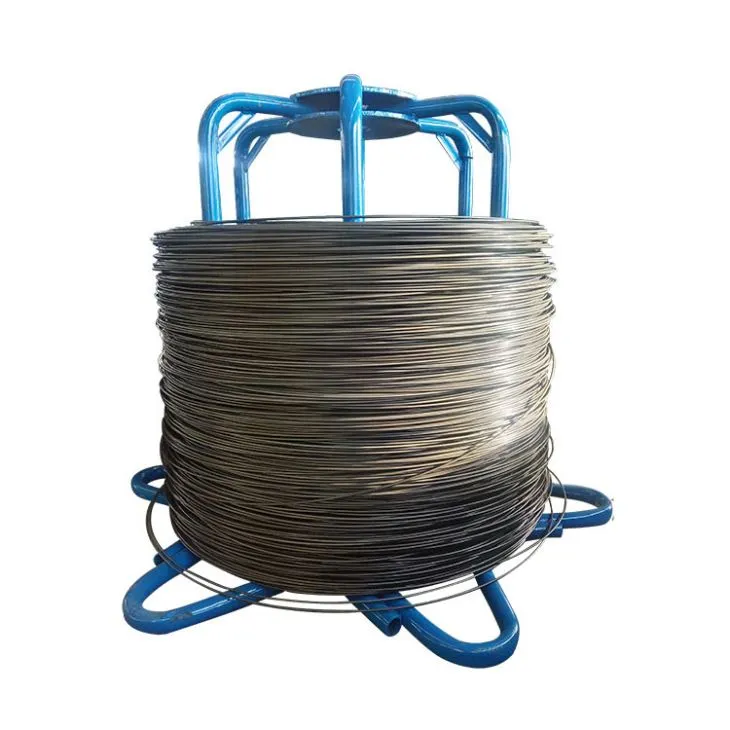

Cold-drawn Alloy Spring Steel Wire 65mn 60SI2MNA 55CRSI SAE9254V 50CRVA

Quick Details Steel Grade: 65mn 60si2mna 55crsi(SAE9254V) 50crva Standard: AISI, ASTM, BS, DIN, JIS Wire Gauge: 0.5mm-10mm Place of Origin: Henan, China (Mainland) Application: Manufacturing

Chat Now
Product Details


the product brief:
65mn60si2mna55crsi(SAE9254V)50crva spring steel wire
The material strength, elastic limit, yield ratio, hardenability and anti-tempering stability, and is widely used, and some used in some of the higher stress in the fatigue (high tensile strength, high strength, high tensile strength, high tensile strength, Performance of the work of important spring and wear serious spring, such as spring rings, shock absorber springs and brake springs, cars, locomotives, tractor coil spring, cylinder safety valve spring and some mechanical wear rods and so on.
Henan friend Tak Metal Products Company Limited
OLD TEMPEREO CARBON STEEL SPRING WIRE
Adapted to the general purpose spring, brake spring, in the upscale automobile clutch spring, shock absorber screw spring, belt tensioner pulley spring and manufacture of engine valve spring steel wire
Classification, designation and wire diameter range

Classified

Static

Fatigue

High fatigue



Tensile strength

Low strength

FDC

TDC

VDC

In strength

FDCrV(A、B)FDSiMn

TDCrV(A、B) TDSiMn

VDCrV(A、B)

High strength

FDCrSi

TDCrSi

VDCrSi

Diameter range

0.5mm~17.0mm

0.5mm~17.0mm

0.5mm~17.0mm

0.5mm~10.0mm

Note 1:Static level steel suitable for general use spring, expressed in FD。
Note 2:Fatigue level steel applied to the clutch spring, suspension spring, shock absorber
spiral spring, expressed in TD.
Note 3:High grade steel wire fatigue in exercise settings, such as engine valve springs, valve
springs, expressed in VD。

Wire codes and steel grades corresponding relationship

Wire code

Commonly used representative brands

FDC、TDC、VDC

65、70、65Mn

FDCrV-A、TDCrV-A、VDCrV-A

50CrA

FDSiMn、TDSiMn

60Si2Mn、60Si2MnA

FDCrSi 、TDCrSi 、VDCrSi

55CrSi、SAE9254V

FDCrV-B、TDCrV-B、VDCrV-B

67CrV


Heat treatment

Spring, the spring should be tempered between 380 ℃ ~ 420 ℃ treatment to reduce surface stress, shot blasting should be 250 ℃ hot pressure or eliminate the stress treatment.

delivery status

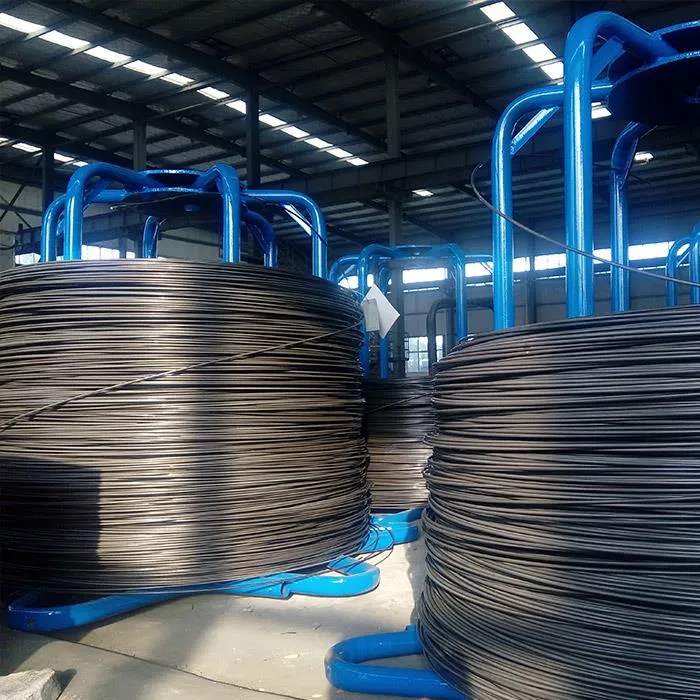

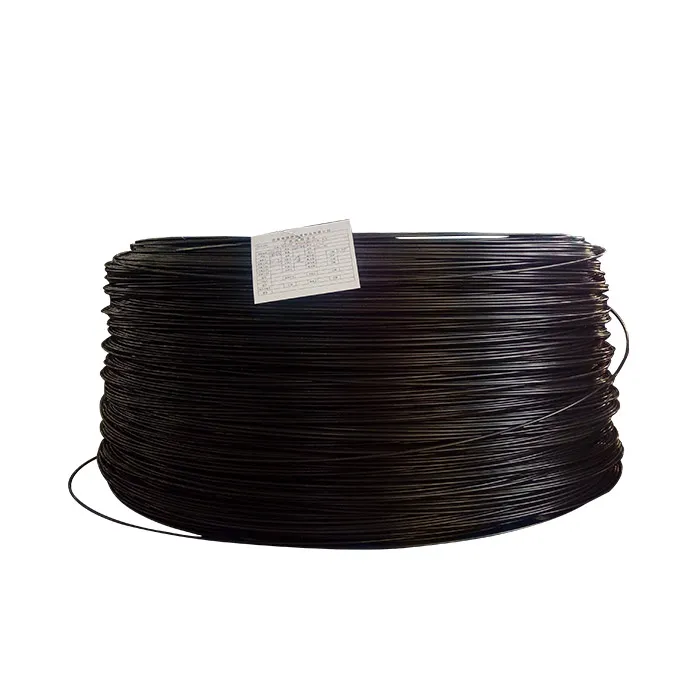

The wire is delivered in coil form

Oil quenched - Tempered spring steel wire

Suitable for general purpose springs, brake brakes springs, middle and high grade automobile clutch springs, shock absorber coil springs, belt tensioner springs and steel wire for manufacturing engine valve springs.

Mechanical properties

Static level, in the fatigue class mechanical properties table (the same disk strength of not more than 50MPa)


High fatigue level mechanical properties table (with the disc strength is not greater than 40MPa)
